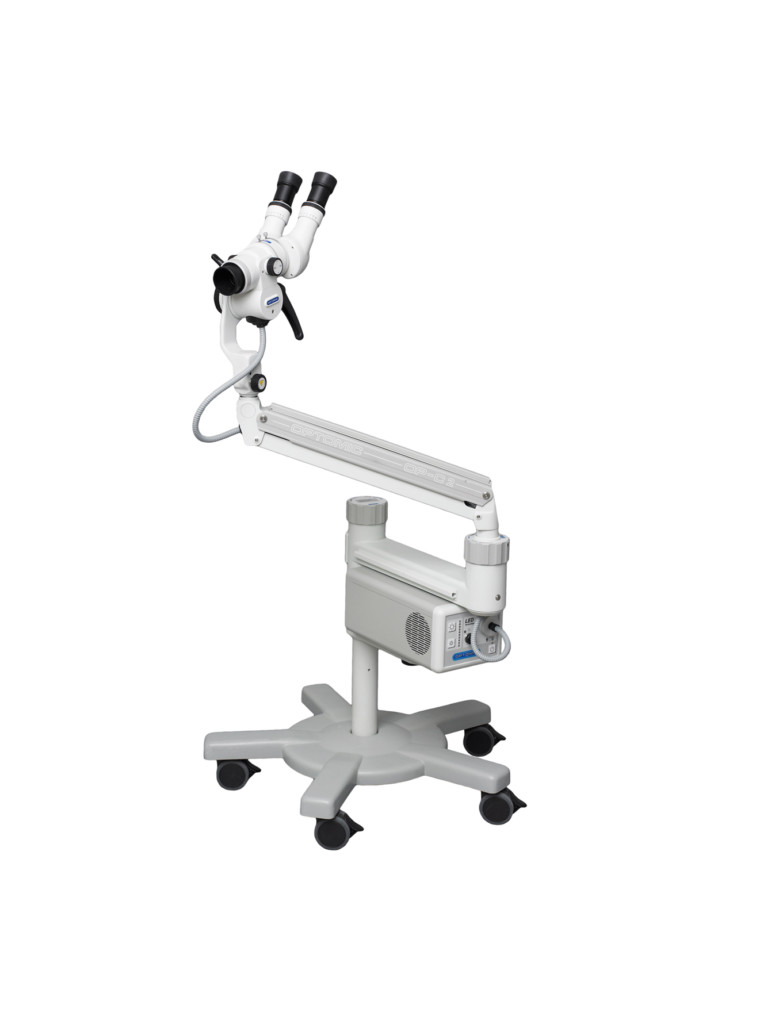

OP-C2L Colposcope

The OP-C2L colposcope combines the standard qualities of the OPTOMIC colposcopes with the latest LED technology illumination. The LED, integrated in the colposcope head, offers white and uniform lighting, perfect for carrying out the daily work of the specialist.


Download catalog PDF
For more information contact us

Technical specifications
  • LED lifespan of 50.000 hours.
  • 45º inclined stereoscopic binocular head.
  • Optics of great brightness with multilayer treatment.
  • Wide field eyepieces, both with dioptric adjustment and protective rubber shells.
  • One central handle to operate the head unit easily.
  • The arm is an autocompensated parallelogram which can be placed in any position.
  • Very soft and smooth operation of all functions.
  • High intensity illumination. Built-in green filter in the head.
  • 3 steps Galilei magnifications changer and micrometric focusing system.
  • Range of magnifications: 3.5x up to 17.5x, depending on the chosen combination of objective, binocular and eyepieces.
  • Different floor and wall mounts available.
  • Optional monitor supports and trays for laptop or CCD camera.
  • Optional systems for video-colposcopy or digital photography.
  • Working distance of 250mm with standard objective (f=300mm optional).
