OP-C5

Colposcope OP-C5

The OP-C5 belongs to the top range of colposcopes manufactured by OPTOMIC. It meets the most demanding requirements, allowing the gynaecologist to carry out diagnosis and perform surgeries in the most reliable and accurate way.




Download catalog PDF
For more information contact us

Category:
Technical specifications
  • Inclined stereoscopic binocular head, which can also be used as straight binocular tube.
  • Adjustment of tightness of head and arm with possibility of complete braking.
  • The arm is an autocompensated parallelogram which can be placed in any position.
  • Very soft and smooth operation of all functions.

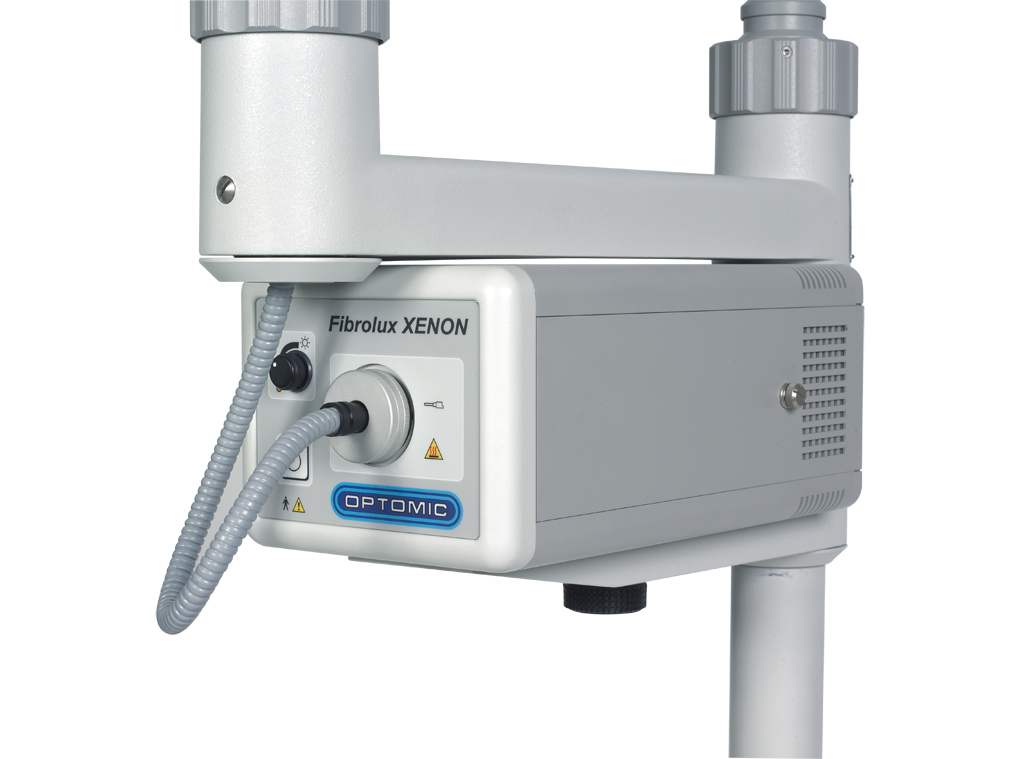

  • Cold light sources of Halogen, Xenon or LED light; all with swing-in green filter.
  • The light source can be removed for its use in other applications such as for example endoscopy,illumination for speculum or head lamp.
  • High intensity fiber optic illumination.

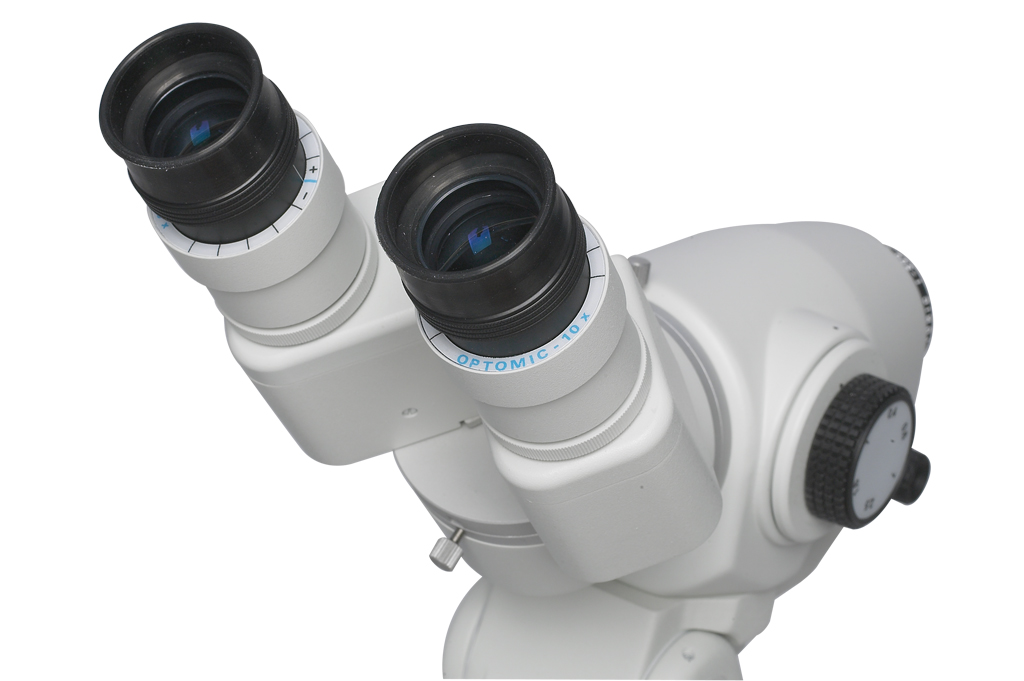

  • Wide field eyepieces with dioptric adjustment and protective rubber shells.
  • 5 steps Galilei magnifications changer and micrometric focusing system.
  • Working distance of 300mm with standard objective (f=250mm optional).
  • Range of magnifications: 2.5x up to 27x, depending on the chosen combination of
    objective, binocular and eyepieces.
  • Different floor and wall mounting options available.
  • Adapter for CO2 laser micromanipulator available.
  • Optional monitor supports and trays for laptop or CCD camera.

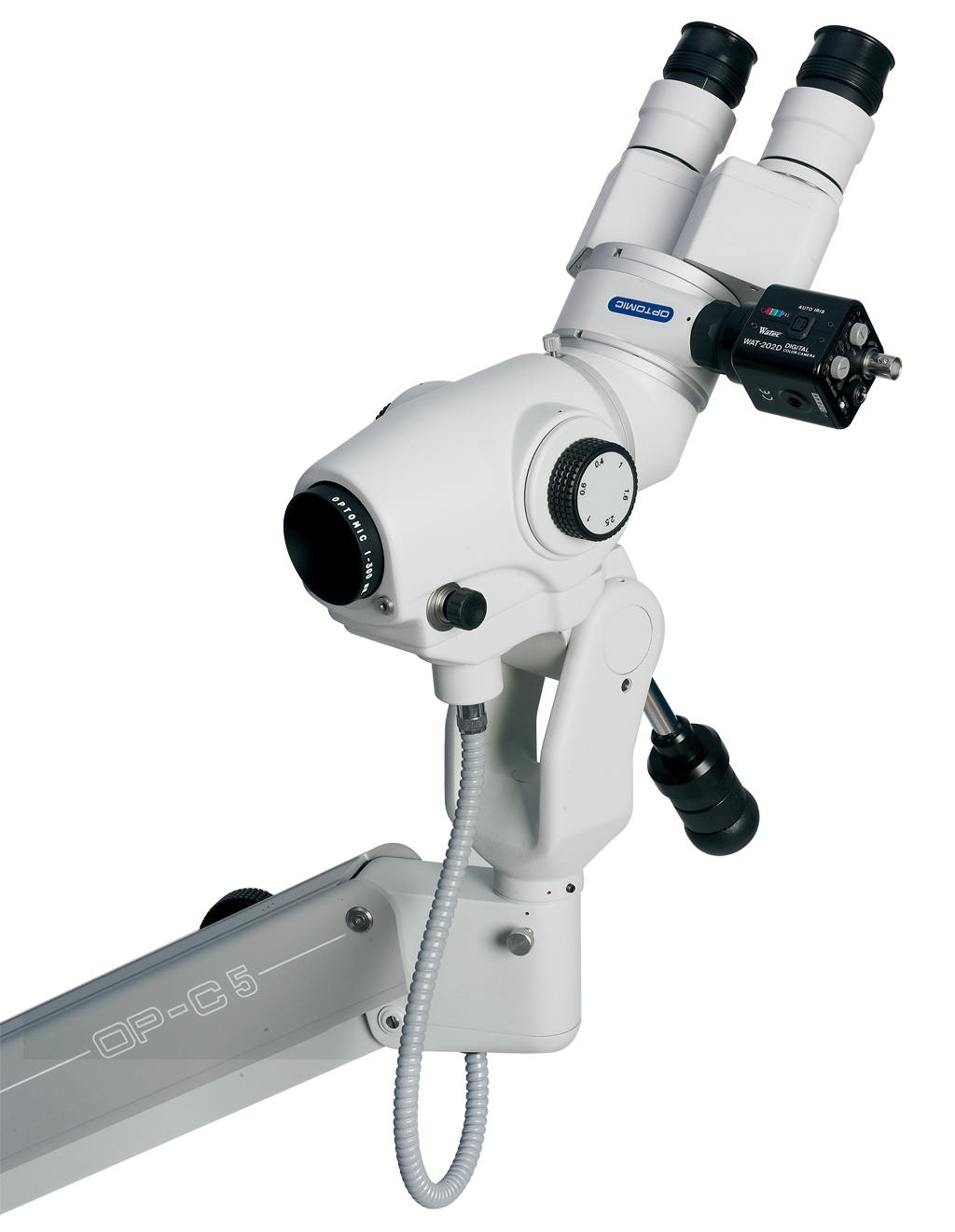

  • Optional systems for video-colposcopy or digital photography
Accesories
  • Objetivo f=300mm (opcional f=250mm)
