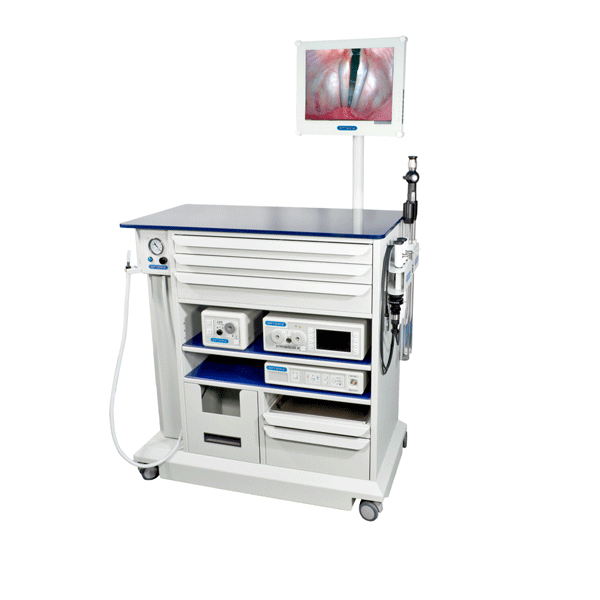

OTOSMART PLUS & OTOSMART
3 September, 2015
OP-C2
23 September, 2015

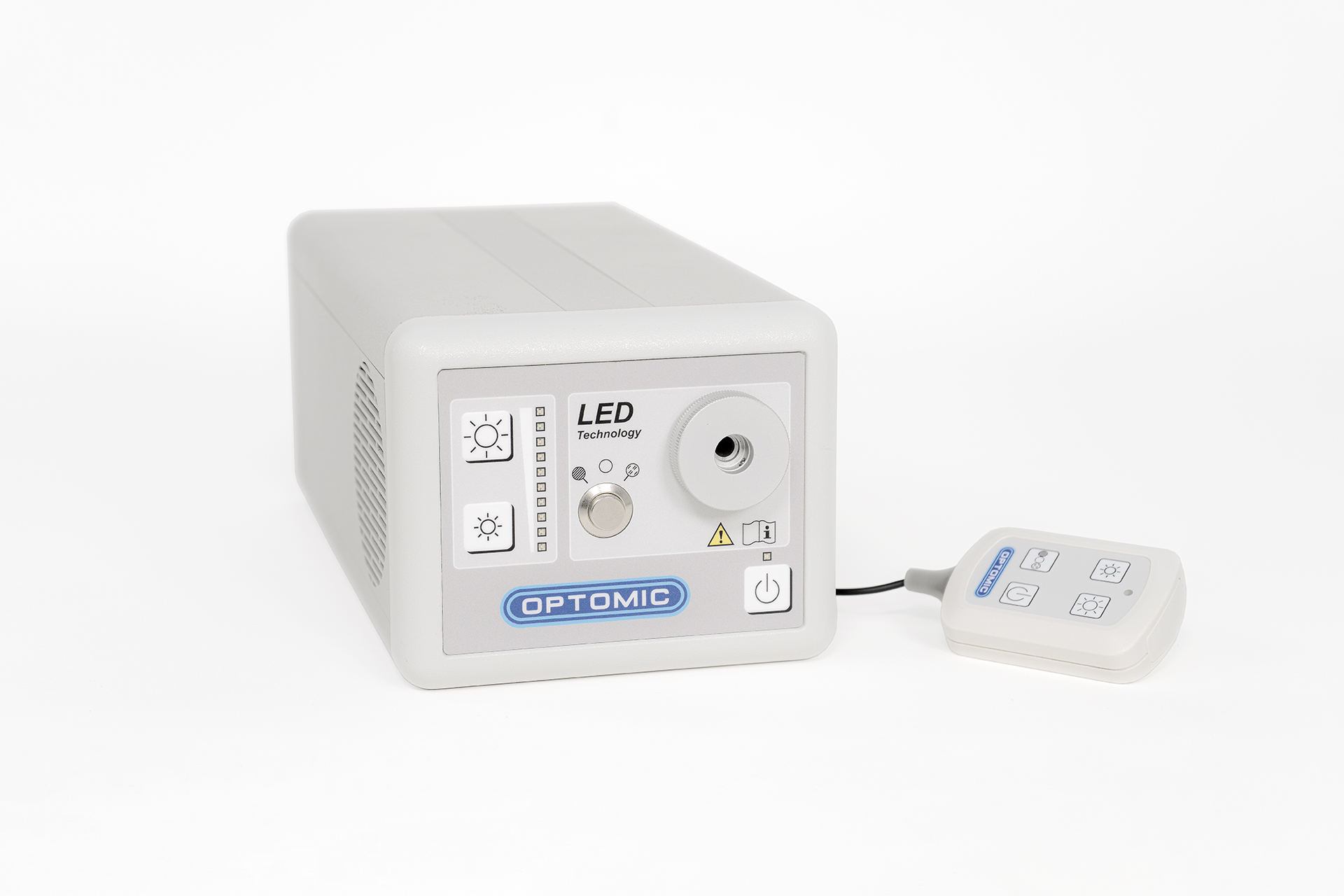

Fibrolux LED HP
Fibrolux LED HP
Our Fibrolux LED HP light source adapts to any medical equipment that uses fiber optic cable as endoscopes or headlights, and is the one used in OPTOMIC’s microscopes and colposcopes.
Two lighting methods and two filters to be chosen by the specialist:
The white light mode faithfully presents the colors of the sample.
Warm light mode provides the best visibility for long-term interventions.
The green filter turns red into black and the amber filter removes UV light.
Technical specifications
Technical features of this light source for endoscopy
| LED LIFESPAN | Over 60.000 hours |
| LIGHT POWER | 10.000 Klux |
| COLOUR TEMPERATURES | White (6.000ºK) and warm (4.750ºK) |
| SWING-IN FILTERS | Green or amber (depending on specialty) |
| VENTILATION SYSTEM | Double and with automatic speed |
| FIBER OPTIC CONNECTION | Storz (other types optional) |
| CONNECTIONS | Two connections 12v DC, 3A max for monitor and camera One vAC power output (max. 5A) Hand control |
| MATERIAL | Aluminium casing |
| POWER SUPPLY | 100 – 240v AC / 50/60 Hz |
| DIMENSIONS | 150 x 120 x 290mm |
| WEIGHT | 4,5 kg |
If you want to find out more about our ENT products click here
