The OP-Dent-5 dental microscope manufactured by OPTOMIC fulfils the most demanding requirements in the dental field. The OP-Dent-5 microscope offers one of the widest ranges of lighting systems and beam splitters, as well as image and video capture

Download catalog PDF
For more information contact us

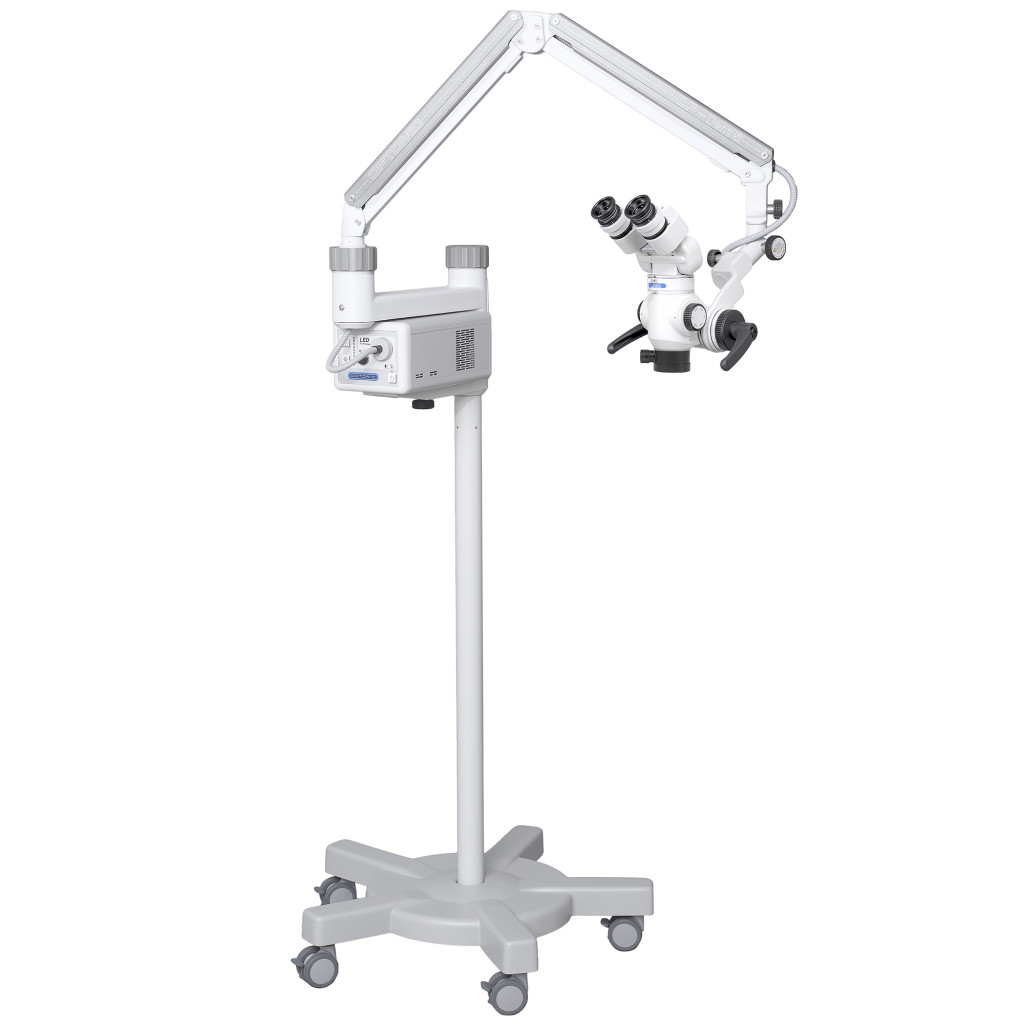

The OP-Dent 5 and OP-Dent dental microscopes manufactured by OPTOMIC fulfil the most demanding requirements in the dental field. They offer one of the widest ranges of lighting systems and beam splitters, as well as image and video capture and treatment devices in the market.
Their excellent optical and mechanical features, together with their great mobility and versatility, make these microscopes the ideal equipment for any treatment.
The sturdiness and stability of the these microscopes, as well as the freedom of movement, enable the head to be placed in any desired position to allow the specialist to adopt an ergonomic posture.

This dental microscope’s arm can be folded to minimum dimensions, thus resulting very practical in the specialist’s office as it occupies very little space.

The OP-Dent 5 dental microscope is designed and built using the most modern and precise manufacturing systems.
Soft Move is our exclusive movement and braking system, which provides OPTOMIC equipment with a play-free
turning mechanism and an excellent mobility, smooth and precise. Soft Move is supported by the great sturdiness and stability of the highly resistant conical cylinder bearings and a unique braking system. The large central knob of this braking system acts by freeing or braking the turning movements with absolute precision, enabling even a total blockage.
The Soft Move system provides the specialist with extremely smooth and accurate movements, permitting the

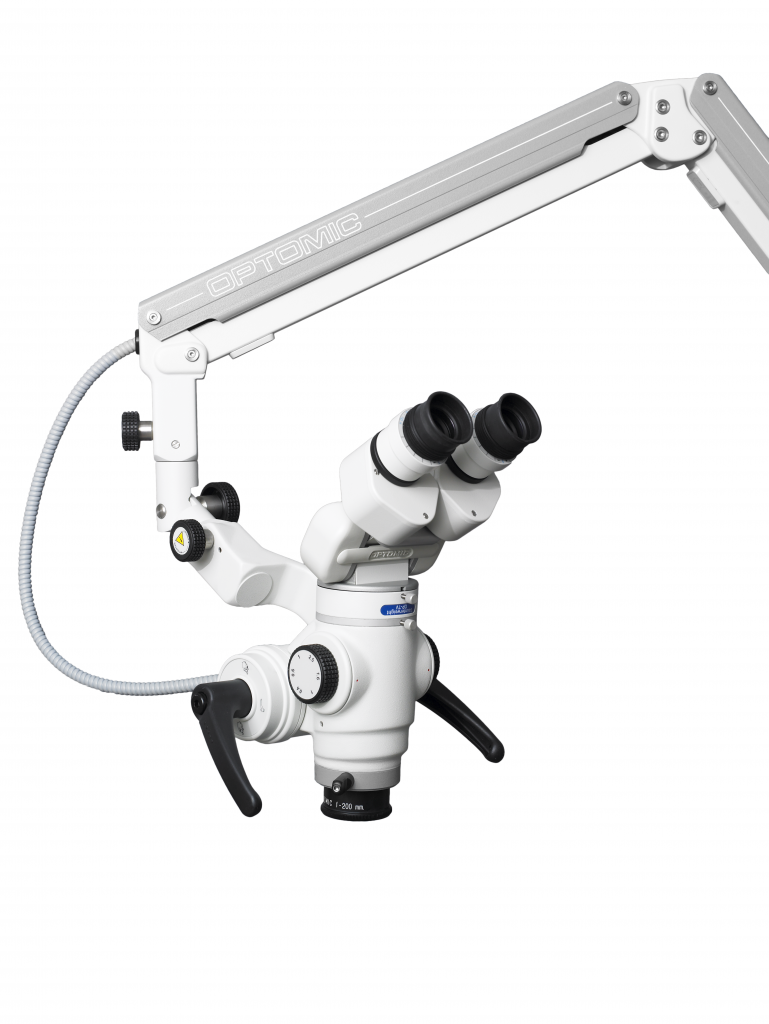

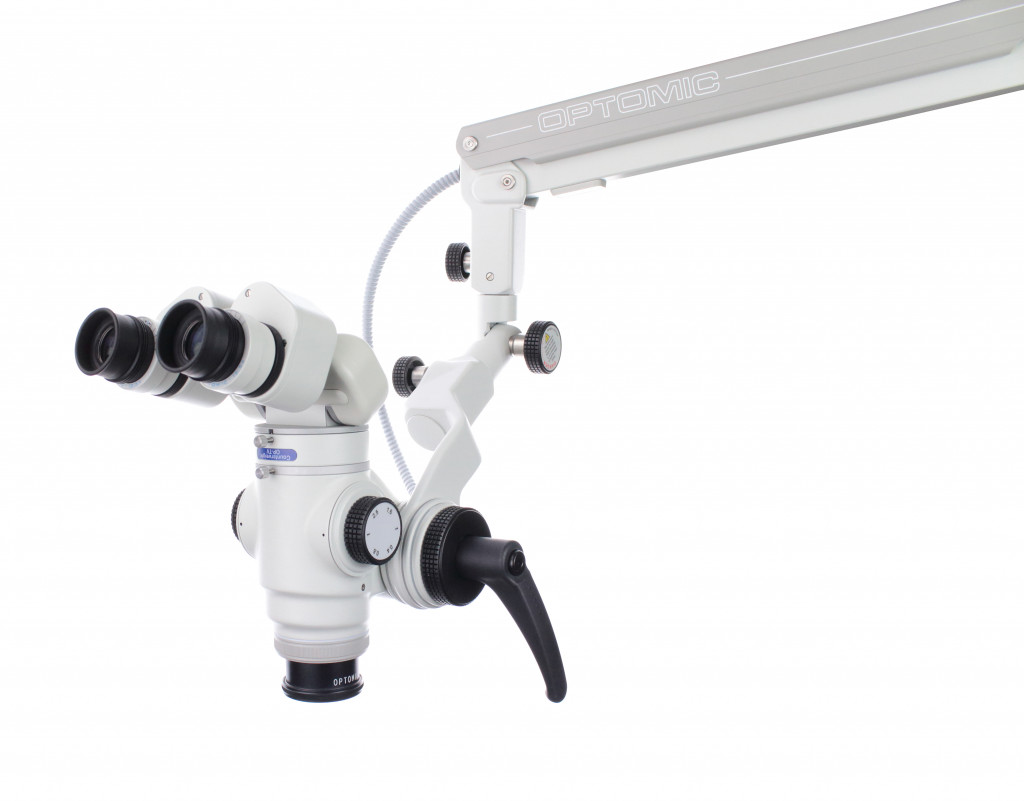

doctor to adopt a comfortable and ergonomic position during examination and surgery. The head, with its
swinging and directional movement, has a brake in each position, as well as a micrometric focusing knob. The magnifications changer is mounted on angular contact bearings, providing free lubrication maintenance, inexistence of play and an absolute accuracy in the rotation and vision of the equipment. This system is exclusive of OPTOMIC equipment.


The OP-Dent microscopes offer two options:
• 0° to 240º inclinable binocular: Its wide turning range allows for the ideal positioning of the microscope as well as the most ergonomic posture of the specialist.
• 45° binocular: Compact binocular with a fixed angle that allows the doctor to carry out the treatment in a direct and indirect manner.


• Standard 250mm.
• Optional 200mm, 300mm and 400mm.
Thanks to its large diameter lenses, it favors the coaxial illumination of the observation axis, offering a homogeneous and bright illumination field, as well as a better light transmission and an optimum lighting of the area explored. The f=400 mm objective enables it to be used as illumination and documentation system for external or extraoral fields.


Standard: 10x widefield eyepieces.
Optional: 12,5x and 16x widefield eyepieces.
Large diameter lenses.
The optical coating offers a high resolution, contrast and definition, providing bright and chromatically real images, and an extraordinary viewing quality.

Effective Magnifications

This dental microscope has a 5-step Galilei changer, permitting magnification from 2x up to 34x, depending on the chosen combination of objective, binocular and eyepieces.

  • Beam splitters and video systems
  • Digitally Soft software

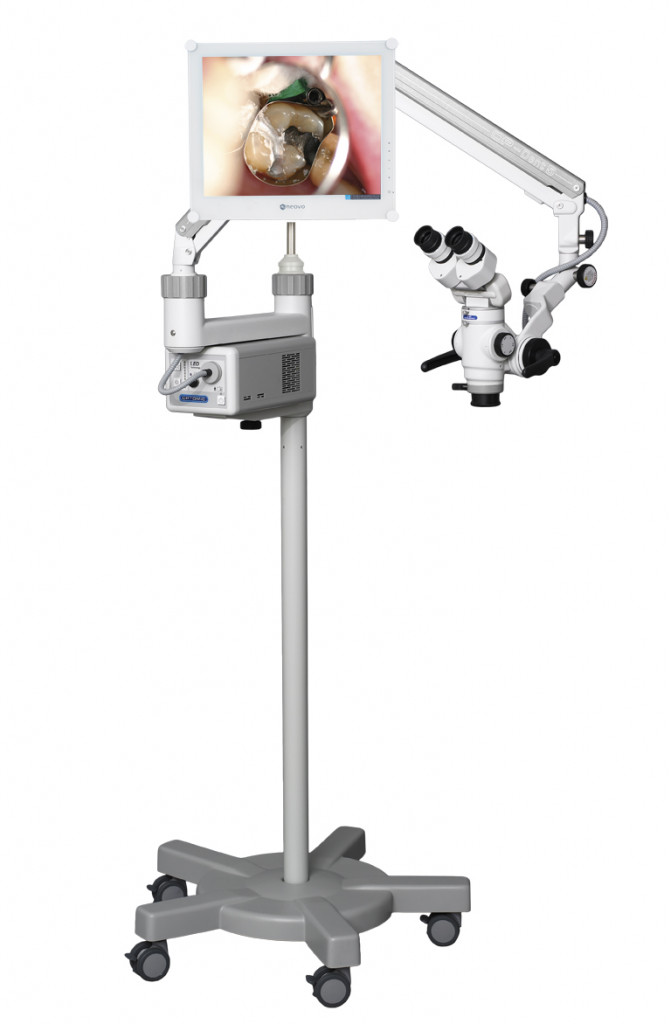

  • Monitor support
  • Laptop tray
  • Camera tray
